Image from satellite

In this example, we'll show how to plot an image from a geostationary satellite into your chosen projection directly.

Geostationary satellite images are, naturally, from their perspective. When projecting them onto maps, you would usually have to reproject the entire image to the map's projection, meaning that you will inevitably blur or lose data at small scales.

One way of getting around this is by rendering the image as a mesh, using GeoMakie's meshimage recipe.

This recipe basically creates a mesh in the space of the source projection, then reprojects the points making up that mesh to the dest projection, and renders the image on that mesh.

This means that the correct values are dynamically calculated and interpolated directly onto the screen, leading to less loss of data, and the ability to display much larger images or even dynamic images scaled on zoom level, like map tiles.

First, we load our packages and download the image we want to display, in this case a black-and-white image of the Earth from a satellite in geostationary orbit.

using Makie, GeoMakie, CairoMakie
using Downloads, FileIO

Download a geostationary satellite image

img = FileIO.load(Downloads.download("https://gist.github.com/pelson/5871263/raw/EIDA50_201211061300_clip2.png"))
image(img)

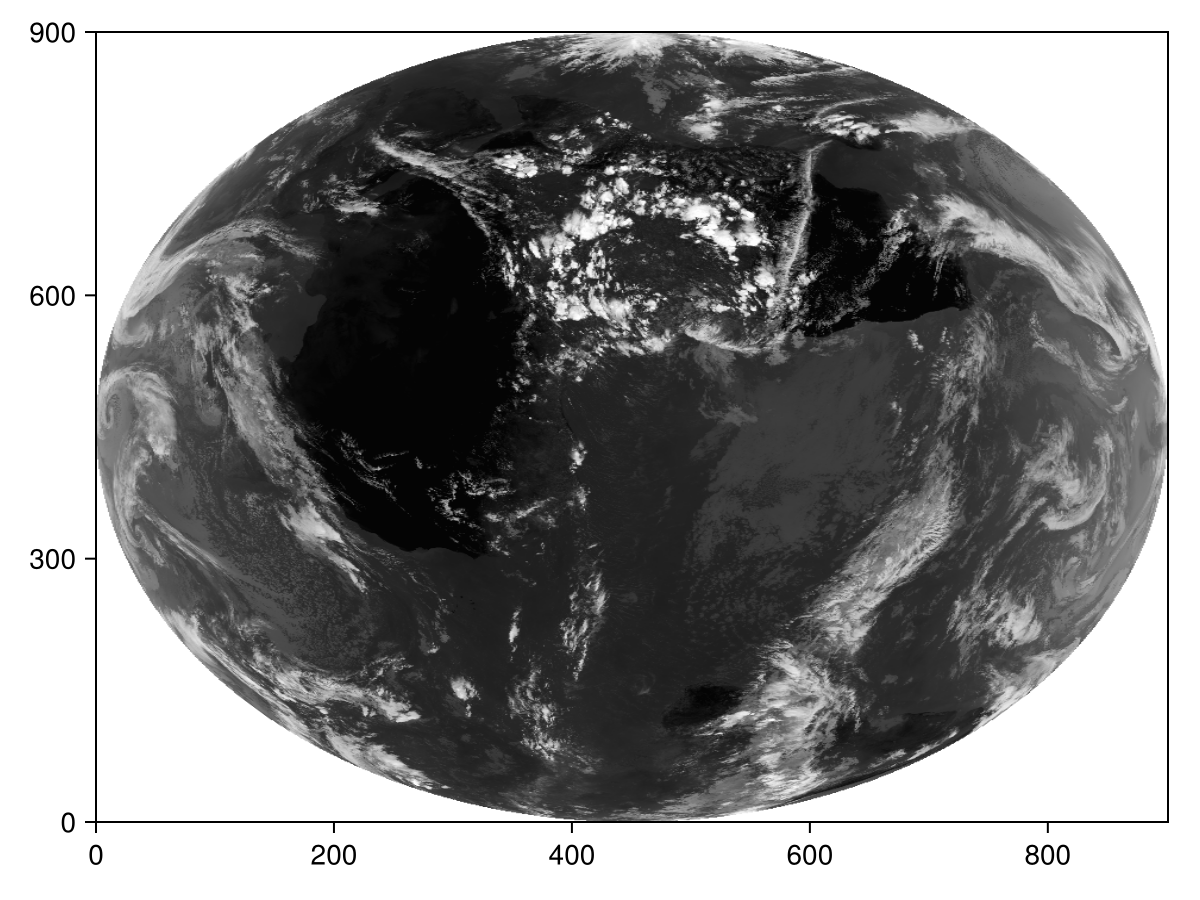

Above, you can see what the image looks like originally.

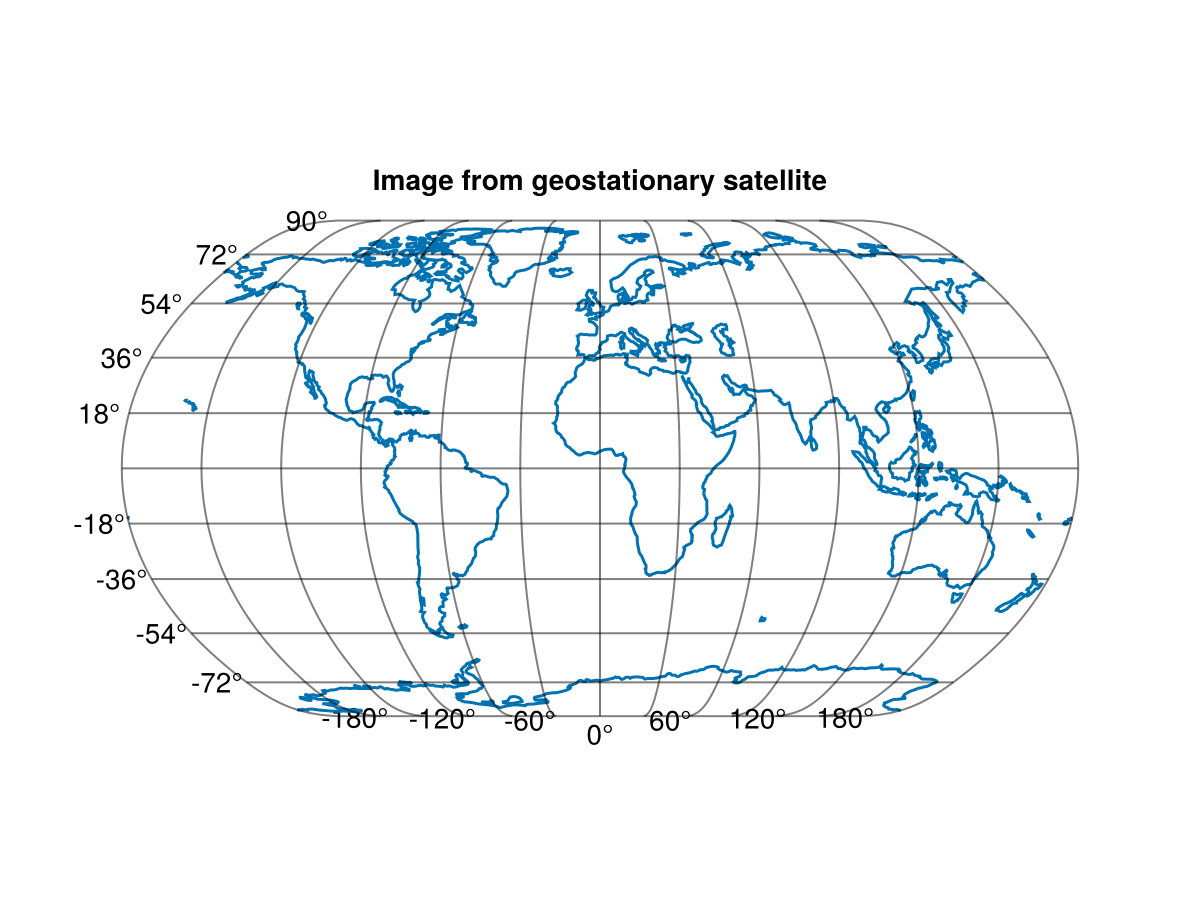

Now, we create a GeoAxis in the Natural Earth projection, and plot the coastlines for reference:

fig = Figure()
ga = GeoAxis(fig[1, 1]; dest = "+proj=natearth", title = "Image from geostationary satellite")
lines!(ga, GeoMakie.coastlines())
fig

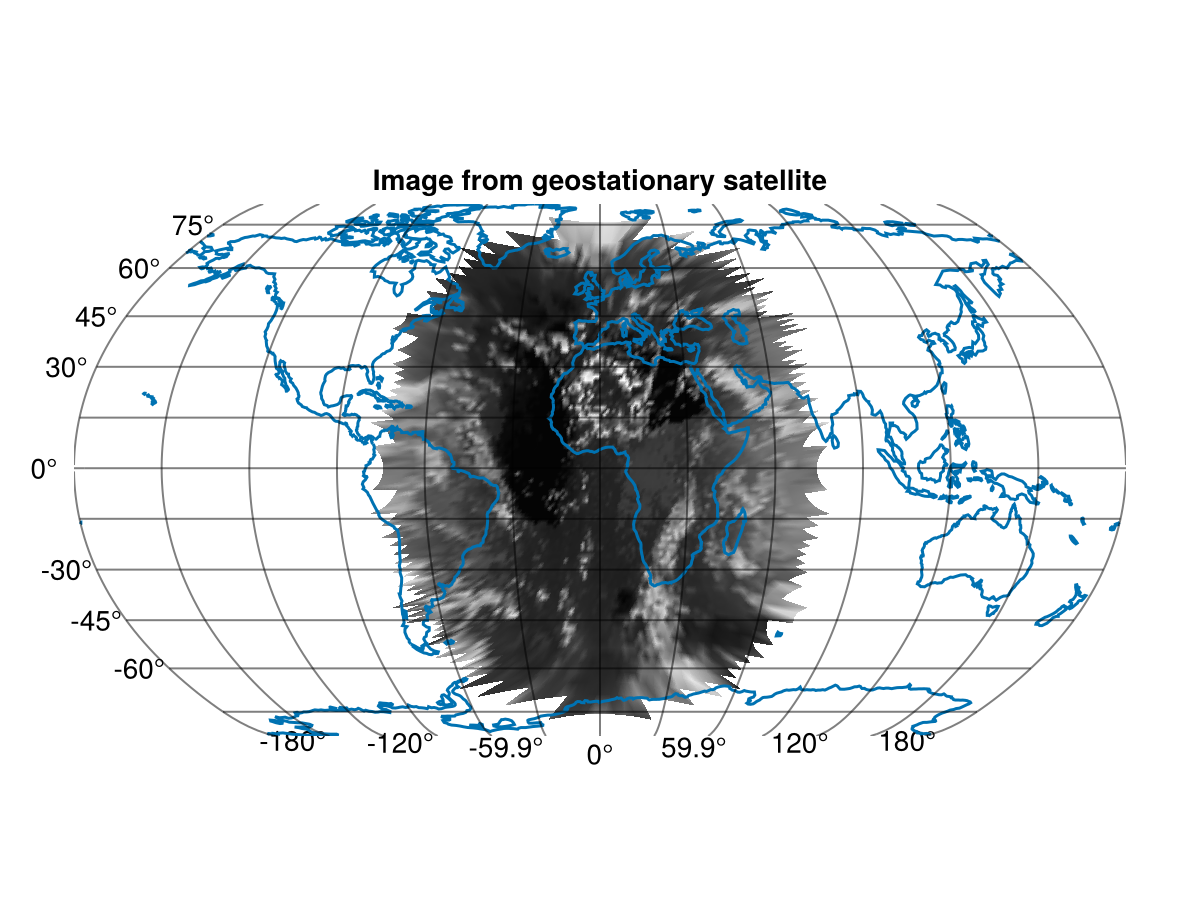

Finally, we can plot the image using the meshimage! recipe:

mi = meshimage!(ga,
    -5500000 .. 5500000, -5500000 .. 5500000, img;
    source="+proj=geos +h=35786000",
    npoints=100
)
translate!(mi, 0,0,-1) # get this below the coastlines
fig

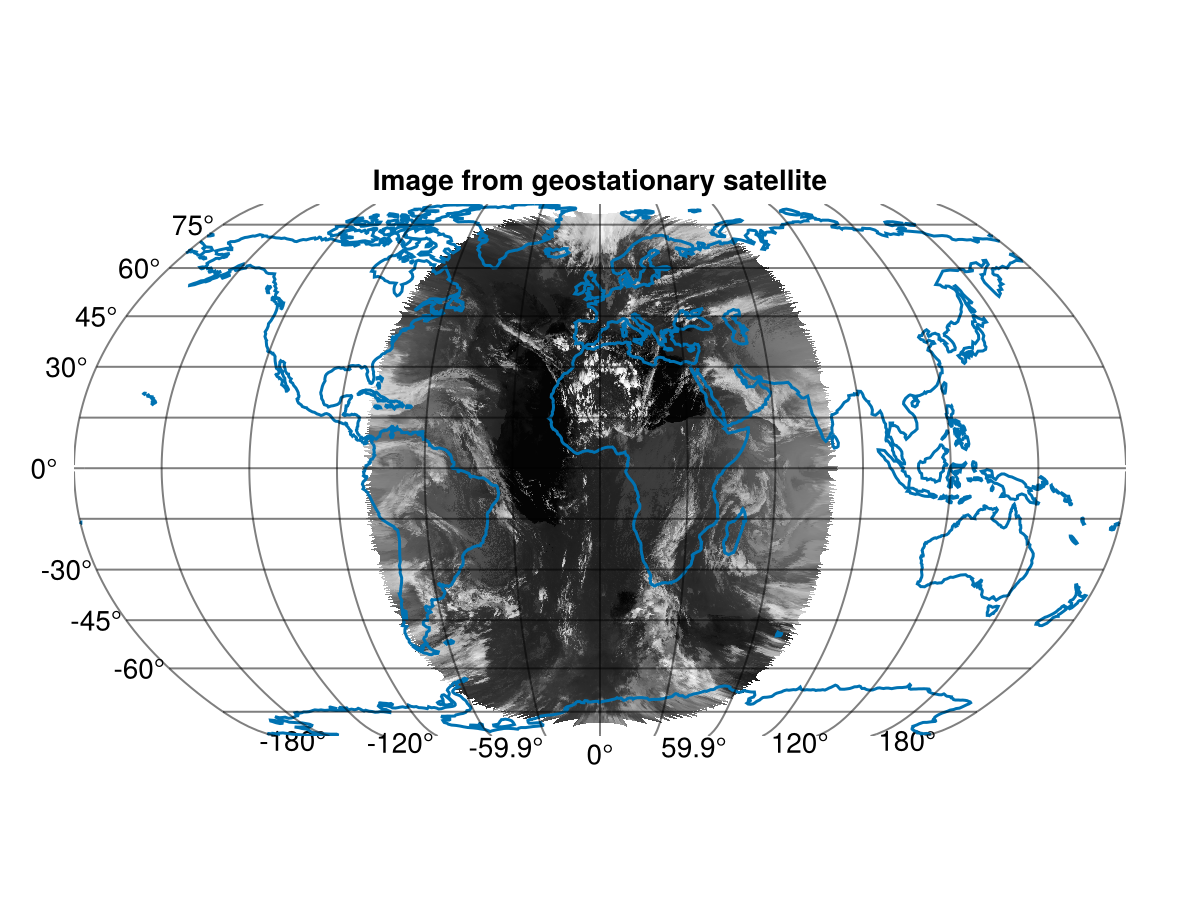

Now, if we scale the density of the mesh's grid by increasing the value of npoints, we get a finer interpolation:

mi.npoints[] = 500
fig

Note how the jagged edges have decreased substantially.

mi.npoints[] = 1000
fig

Of course, at some point we hit diminishing returns.

Surface could be used as well, but is slower!

surface!(
    ga,
    -5500000..5500000, -5500000..5500000, # the bounding box in input space for the image
    ones(size(img)...); # dummy points to create the surface
    color = img,
    source = "+proj=geos +h=35786000"
)

This page was generated using Literate.jl.
